How to Calculate the Support Capacity of Scaffolding, Steel Props, and Timber Beams

Accurately calculating the support capacity of your structural materials is the cornerstone of every safe construction project. Whether you’re planning formwork support, a scaffolding system, or a structural frame, understanding the load-bearing capacity of scaffolding, steel props, and timber beams is non-negotiable. This guide provides a foundational overview of the principles and methods involved.

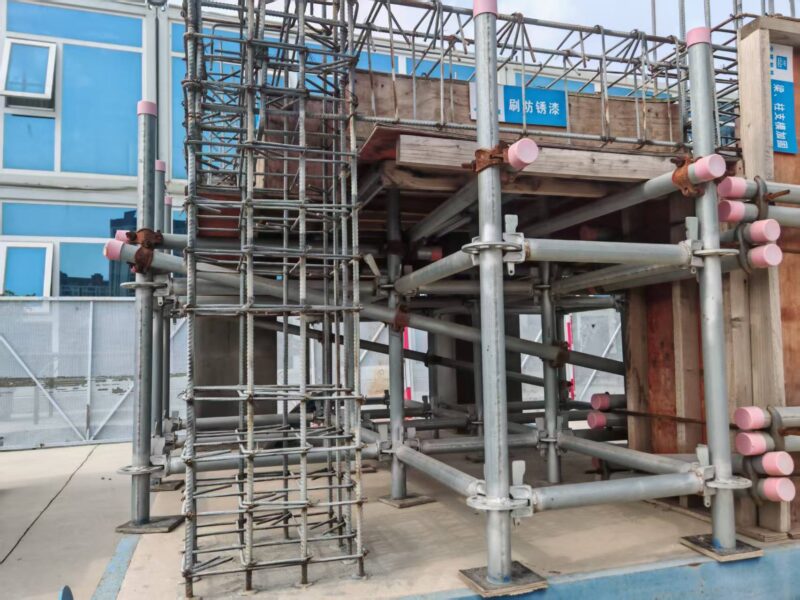

Part 1: Calculating Scaffolding Load Capacity

Scaffolding load calculation determines the total safe load a scaffolding system can bear. It involves several key steps:

1. Determine the Total Load: Identify both the Dead Load (weight of the scaffold structure, planks, etc.) and the Live Load (workers, tools, materials). A common minimum design live load is 25 psf (1.2 kPa) for light duty and can exceed 75 psf (3.6 kPa) for heavy-duty applications.

2. Understand the Scaffolding Type: The load capacity of scaffolding varies by type. Cuplock scaffolding and frame scaffolding have different load ratings per bay. Always consult the manufacturer’s load capacity chart.

3. Apply the Safety Factor: A safety factor (often 4:1 for scaffolding) is applied to the ultimate failure load to determine the Safe Working Load (SWL). This accounts for unforeseen conditions and imperfections.

   • Safe Working Load (SWL) = Ultimate Load / Safety Factor

Key Consideration: For shoring with scaffolding, the calculation must include the weight of wet concrete, formwork, and construction impact. This is a specialized shoring capacity calculation.

Part 2: Calculating Steel Prop (Shoring) Capacity

Steel props (or adjustable steel props) are used for vertical formwork support. Their capacity is highly dependent on their length.

1. Find the Manufacturer’s Chart: The most reliable method is to use the manufacturer’s shoring capacity chart. This chart shows the allowable axial load for a specific prop model at various extended lengths.

2. Calculate the Actual Load: Determine the load each prop must carry. For concrete slab formwork, calculate the tributary area supported by one prop.

   • Load per Prop = (Slab Thickness x Concrete Density + Live Load) x (Tributary Area)

3. Check Against Capacity: Ensure the calculated Load per Prop is less than the Allowable Load from the chart for the prop’s installed length. Never exceed the specified capacity.

Part 3: Calculating Timber Beam Load Capacity

Calculating timber beam load capacity is more complex, as it involves the beam’s geometry, species, and grade.

1. Identify Beam Properties: You need to know the wood species (e.g., Douglas Fir, Oak), grade, and its dimensions (breadth b and depth d).

2. Understand the Load Types: Beams experience bending stress and shear stress. The calculation must check both.

3. Use a Simplified Method or Span Tables:

   • For Estimations: Use pre-calculated timber beam span tables. These tables, found in building codes or engineering manuals, show the maximum allowable span for a given beam size and load.

   • For Detailed Calculations: The basic bending formula is:

     • M_max = (w * L^2) / 8 (for a uniformly distributed load)

     • F_b = M_max / S (where S is the section modulus, S = (b * d^2) / 6)

     • The calculated bending stress F_b must be less than the allowable bending stress for the specific timber.

Universal Principles for All Calculations

• Safety First: Always use a conservative safety factor. Never guess a material’s capacity.

• Consult Standards: Refer to relevant engineering standards (e.g., ASTM, EN, BS) for material properties and design methodologies.

• Seek Professional Expertise: While this guide provides a foundation, structural design for complex projects must be performed by a qualified structural engineer. Their expertise is crucial for considering lateral stability, connection details, and dynamic loads.
